Description

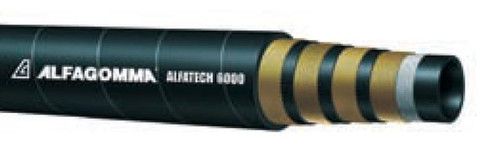

Alfagomma AT850AA-08 Alfa Tech 6000 Hydraulic Hose - Four and Six Wire Spiral reinforced Hydraulic Hose
- Tube - Synthetic rubber, black... oil-resistant.
- Reinforcement - Four or six layers of spirally wrapped high tensile steel wire reinforcement separated by synthetic rubber cushion on a fabric layer.
- Cover - Synthetic rubber, black... oil, fuel, weather, ozone and abrasion-resistant.
- Couplings - Interlock crimp-on permanent type.
- Note: For Interlock style, hose cover and portion of tube needs to be removed before attaching couplings.
- Branding - ALFAGOMMA ALFATECH 6000 ID...WP 42 MPa BP 168 MPa MSHA IC 152/8 Q/YR
- Brand: Alfagomma
- Braid Type: Four Wire Spiral Reinforced
- Nominal I.D.: 0.500", 12.70 mm
- Nominal O.D.: 0.970", 24.6 mm
- Max. Working Pressure: 42.0 MPa, 6000 PSI
- Min. Bend Radius: 9.20", 230.0 mm
- Approx. Weight (per 100 ft.): 59.00 lbs
- Coupling Recommendations Ferrules (Two Piece): H1100404-08
- Temperature: -40 to 250 Deg F, 175 Deg F, 250 Deg F, -40 to 121 Deg C, 80 Deg C, 121 Deg C
- Option: MSHA accepted cover available on request.
- Application / Material Conveyed: Petroleum-based hydraulic fluids
