Description

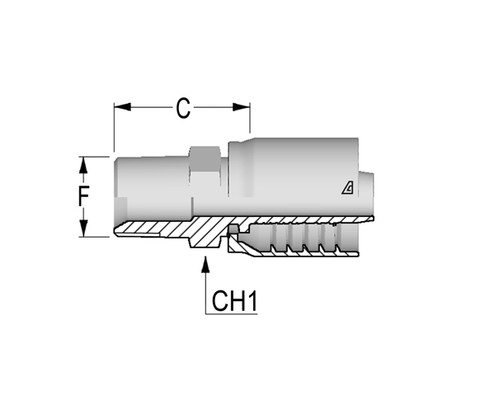

Alfagomma C12210710-0402 BSP/JIS Solid Male Tapered, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: BSP Tapered
- Material: Steel
- Weight Each: 0.090 lbs
- For Use with these Hoses: FXP2, R1AT, R2AT
- Hose Dash Size: 04
- Hose Size: 0.25", 6.40 mm
- Thread Dash Size (A): 02
- Thread Size (A): 1/8"-28
- Cut-Off Factor (C): 22.3 mm
- Hex Dia. (2): 12 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid
- Connection Type: Male
- Configuration: Straight
- Nut Type: Solid
- R5 Hose: 3/16
