Description

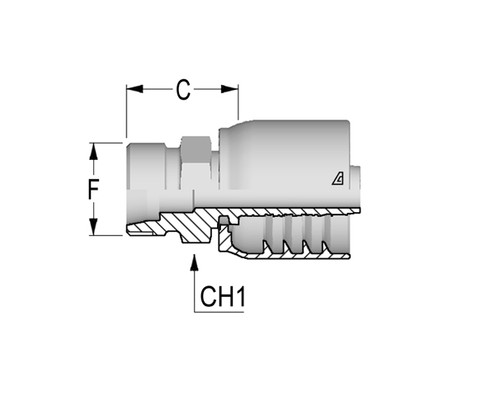

Alfagomma C12211210-0418 Metric Solid Male 24 Deg Seat DIN 3861 – Heavy, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: DIN CES
- Material: Steel
- Weight Each: 0.128 lbs
- Seat: 24 Deg
- For Use with these Hoses: FXP2, R1AT, R2AT
- Hose Dash Size: 04
- Hose Size: 0.25", 6.40 mm
- Thread Dash Size (A): 18
- Thread Size (A): M18 x 1.5 mm
- Cut-Off Factor (C): 24.3 mm
- Hex Dia. (2): 19 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid
- Connection Type: Male
- Configuration: Straight
- Nut Type: Solid
- R5 Hose: 3/16
- Tube O.D.: 10.00 mm
