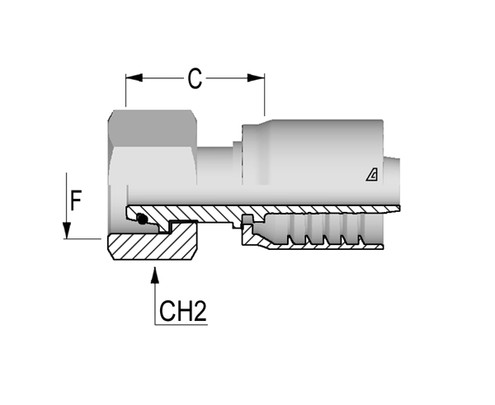

Alfagomma C12221613-0418 Metric Swivel Female O-Ring 24 Deg Seat DIN 3865 – Heavy, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: DIN DKO-S
- Material: Steel
- Weight Each: 0.170 lbs
- Seat: 24 Deg
- For Use with these Hoses: FXP2, R1AT, R2AT
- Hose Dash Size: 04
- Hose Size: 0.25", 6.40 mm
- Thread Dash Size (A): 18
- Thread Size (A): M18 x 1.5 mm
- Cut-Off Factor (C): 27.0 mm
- Hex Dia. (1): 22 mm
- Tube O.D.: 10.00 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid
- Connection Type: Female
- Configuration: Straight
- Nut Type: Slip On
- R5 Hose: 3/16
