Description
Alfagomma C12243390-1212 90 Deg Flange SAE J518 Code 61 Solid Bent Tube, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: SAE Code 61 Flange
- Material: Steel
- Max. Working Pressure: 5000 PSI
- Weight Each: 0.841 lbs
- For Use with these Hoses: AT3K, FXP2, R1AT, R2AT
- Hose Dash Size: 12
- Hose Size: 0.75", 19.00 mm

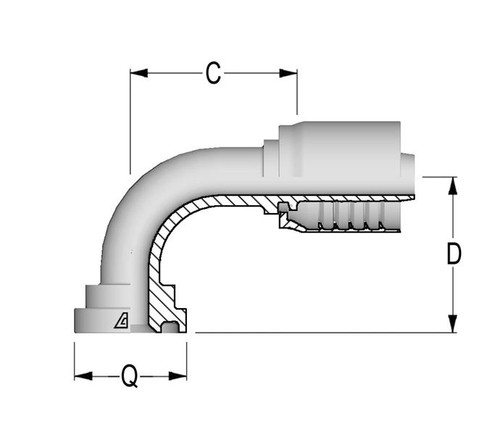

- Cut-Off Factor (C): 61.0 mm
- Drop (D): 56.5 mm
- Flange Size (A): 1.50", 38.1 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid
- Connection Type: Flange
- Configuration: 90Deg
- Nut Type: Solid
- R5 Hose: 5/8
