Description

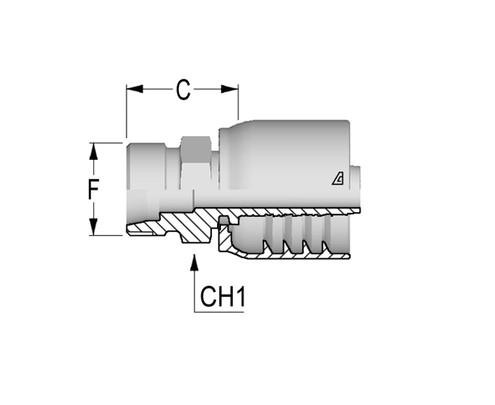

Alfagomma C12411210-1642 Metric Solid Male 24 Deg Seat DIN 3861 – Heavy, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: DIN CES
- Material: Steel
- Weight Each: 1.188 lbs
- Seat: 24 Deg
- For Use with these Hoses: R12, R1AT, R2AT
- Hose Dash Size: 16
- Hose Size: 1.00", 25.40 mm
- Thread Size (A): M42 x 2 mm
- Cut-Off Factor (C): 42.4 mm
- Hex Dia. (2): 46 mm
- Tube O.D.: 30.00 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid, 4 Spiral R12
- Connection Type: Male
- Configuration: Straight
- Nut Type: Solid
Product Features
Extended Information
Technical Specs
