Description
Alfagomma C12421513-0822 Metric Swivel Female O-Ring 24 Deg Seat DIN 3865 – Light, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: DIN DKO-L
- Material: Steel
- Weight Each: 0.324 lbs
- Seat: 24 Deg
- For Use with these Hoses: R12
- Hose Dash Size: 08
- Hose Size: 0.50", 12.70 mm
- Thread Dash Size (A): 22
- Thread Size (A): M22 x 1.5 mm

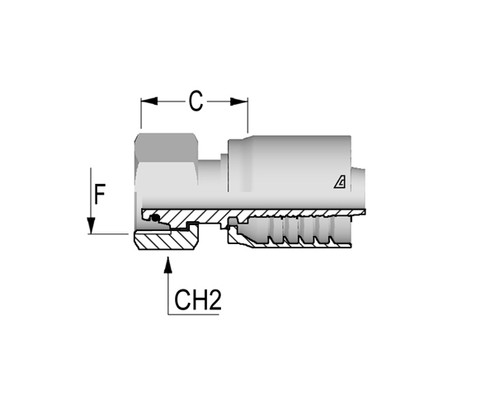

- Cut-Off Factor (C): 27.6 mm
- Hex Dia. (1): 27 mm
- Tube O.D.: 15.00 mm
- Ferrule Type: Non Skive
- Hose Type: 4 Spiral R12
- Connection Type: Female
- Configuration: Straight
- Nut Type: Slip On
Product Features
Extended Information
Technical Specs
