Description

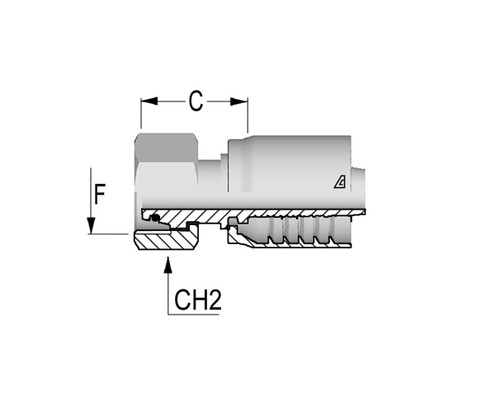

Alfagomma C12421513-1026 Metric Swivel Female O-Ring 24 Deg Seat DIN 3865 – Light, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: DIN DKO-L
- Material: Steel
- Weight Each: 0.448 lbs
- Seat: 24 Deg
- For Use with these Hoses: R12, R1AT, R2AT
- Hose Dash Size: 10
- Hose Size: 0.62", 15.90 mm
- Thread Dash Size (A): 26
- Thread Size (A): M26 x 1.5 mm
- Cut-Off Factor (C): 28.6 mm
- Hex Dia. (1): 32 mm
- Tube O.D.: 18.00 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid, 4 Spiral R12
- Connection Type: Female
- Configuration: Straight
- Nut Type: Slip On
