Description

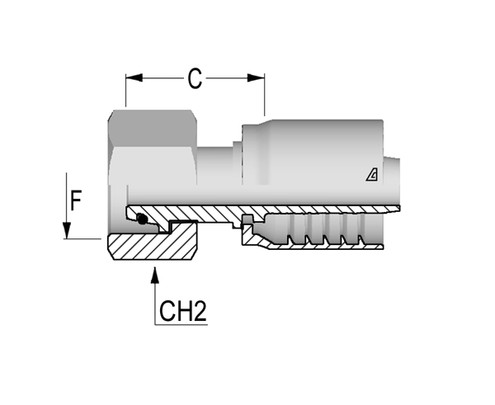

Alfagomma C12421613-0622 Metric Swivel Female O-Ring 24 Deg Seat DIN 3865 – Heavy, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: DIN DKO-S
- Material: Steel
- Weight Each: 0.313 lbs
- Seat: 24 Deg
- For Use with these Hoses: R12
- Hose Dash Size: 06
- Hose Size: 0.38", 9.50 mm
- Thread Size (A): M22 x 1.5 mm
- Cut-Off Factor (C): 30.5 mm
- Hex Dia. (1): 27 mm
- Tube O.D.: 14.00 mm
- Ferrule Type: Non Skive
- Hose Type: 4 Spiral R12
- Connection Type: Female
- Configuration: Straight
- Nut Type: Slip On
