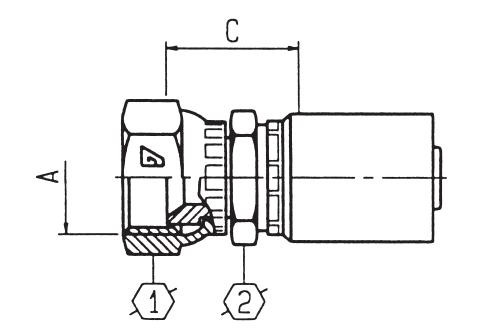

Alfagomma C12426611-1212 SAE Female Swivel 45 Deg Seat, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: SAE Female Swivel 45 Seat
- Material: Steel
- Weight Each: 0.589 lbs
- Seat: 45 Deg
- For Use with these Hoses: R12, R1AT, R2AT
- Hose Dash Size: 12
- Hose Size: 0.75", 19.00 mm
- Thread Dash Size (A): 12
- Thread Size (A): 1 1/16"-14
- Cut-Off Factor (C): 29.6 mm
- Hex Dia. (1): 32 mm
- Hex Dia. (2): 27 mm
- Ferrule Type: Non Skive
- Hose Type: 4 Spiral R12
- Connection Type: Female
- Configuration: Straight
- Nut Type: Crimped
