Description

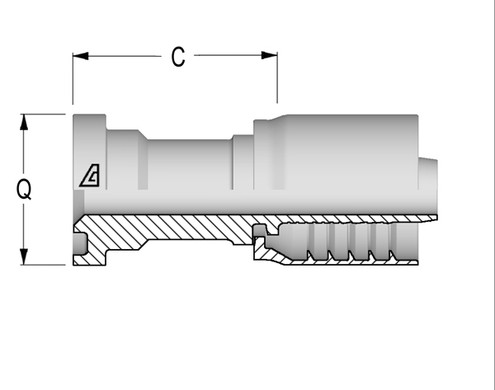

Alfagomma C12443310-2024 O-Ring Flange SAE J518 Code 61 Straight, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: SAE Code 61 Flange
- Material: Steel
- Max. Working Pressure: 3000 PSI
- Weight Each: 1.614 lbs
- For Use with these Hoses: R12, R1AT, R2AT
- Hose Dash Size: 20
- Hose Size: 1.50", 31.80 mm
- Cut-Off Factor (C): 58.5 mm
- Flange Size (A): 2.38", 60.3 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid, 4 Spiral R12
- Connection Type: Flange
- Configuration: Straight
- Nut Type: Solid
