Description
Alfagomma C12443340-0808 45 Deg O-Ring Flange SAE J518 Code 61 Solid Bent Tube, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: SAE Code 61 Flange
- Material: Steel
- Max. Working Pressure: 5000 PSI
- Weight Each: 0.401 lbs
- For Use with these Hoses: R12
- Hose Dash Size: 08
- Hose Size: 0.50", 12.70 mm

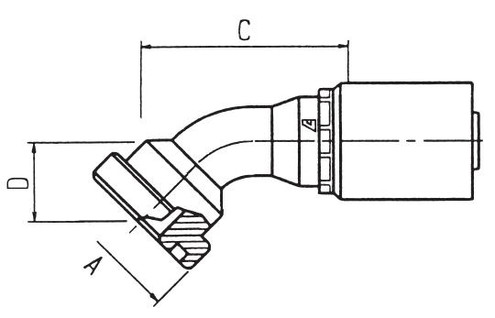

- Cut-Off Factor (C): 53.0 mm
- Drop (D): 22.0 mm
- Flange Size (A): 1.19", 30.2 mm
- Ferrule Type: Non Skive
- Hose Type: 4 Spiral R12
- Connection Type: Flange
- Configuration: 45Deg
- Nut Type: Solid
