Description

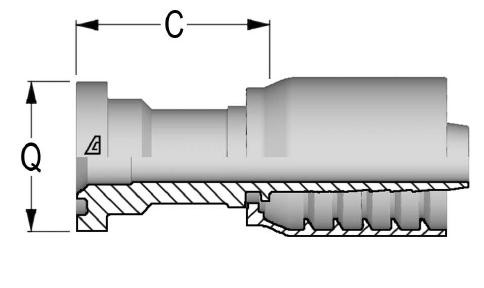

Alfagomma C12643610-3232 Flange SAE J518 Code 62 for Ultra High Pressure Hoses, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: SAE Code 62 Flange
- Material: Steel
- Max. Working Pressure: 6000 PSI
- Hose Dash Size: 32
- Hose I.D.: 2.00", 50.8 mm
- Cut-Off Factor (C): 76.0 mm
- Dimension - Q: 79.4 mm
- Flange Size: 2.00
- Ferrule Type: Non Skive
- Hose Type: R 13/4 SH
- Connection Type: Flange
- Configuration: Straight
- Nut Typ: Solid
- R5 Hose: 1 13/16
- Weight: 5.840 lbs
