Description

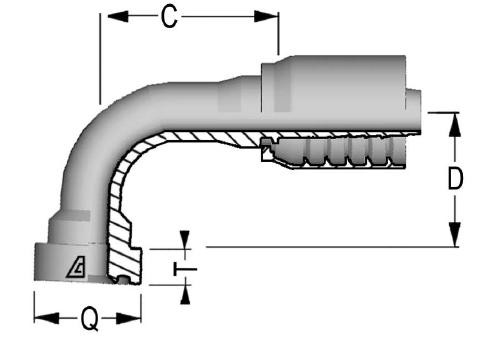

Alfagomma C12643990-1620 90 Deg SUPERCAT Flange 6000 PSI for Ultra High Pressure Hoses, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: Supercat Flange
- Material: Steel
- Max. Working Pressure: 6000 PSI
- Hose Dash Size: 16
- Hose I.D.: 1", 25.4 mm
- Cut-Off Factor (C): 77.0 mm
- Drop (D): 82.5 mm
- Flange Size: 1.25
- Dimension - Q: 54.0 mm
- Dimension - T: 14.2 mm
- Ferrule Type: Non Skive
- Hose Type: R 13/4 SH
- Connection Type: Flange
- Configuration: 90Deg
- Nut Type: Solid
- R5 Hose: 7/8
- Weight: 2.211 lbs
