Description

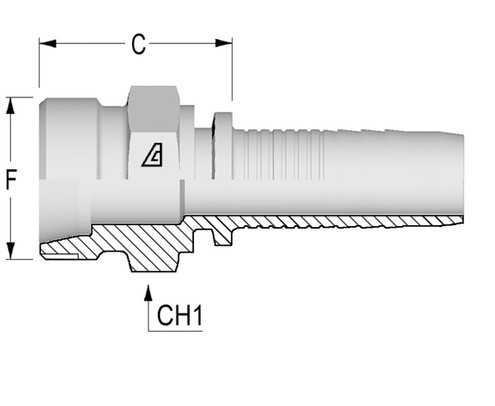

Alfagomma H1211110-0516 Metric Solid Male 24 Deg Seat DIN, 3853 Light, Two-Piece Fitting
- Brand: Alfagomma
- Seat: 24 Deg
- Hose Dash Size: 05
- Hose I.D.: 0.31", 7.9 mm
- Thread Size (A): M16 x 1.5 mm
- Tube O.D.: 10.00 mm
- Cut-Off Factor (C): 23.3 mm
- Hex Dia. (2): 17 mm
- Weight: 0.062 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Male
- Thread Type: DIN CEL
- Configuration: Straight
- Nut Type: Solid
- R5 Hose: 1/4
Product Features
Extended Information
Technical Specs
