Description

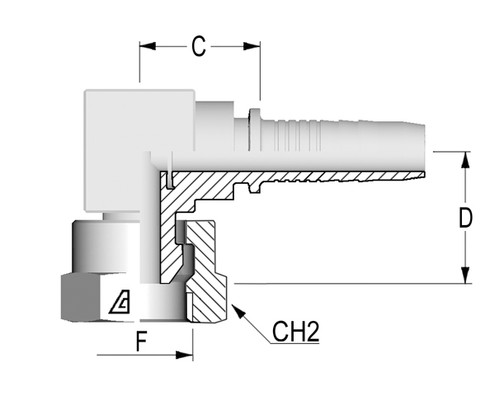

Alfagomma H1220581-0808 90 Deg BSP Compact Female Elbow 60 Deg Cone, Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 08
- Hose I.D.: 1/2", 12.7 mm
- Thread Dash Size (A): 08
- Thread Size (A): 1/2"-14
- Cut-Off Factor (C): 32.0 mm
- Drop (D): 30.0 mm
- Hex Dia. (1): 27 mm
- Weight: 0.306 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: BSP
- Configuration: Compact Elbow
- Nut Type: Crimped
- R5 Hose: 13/32
