Description

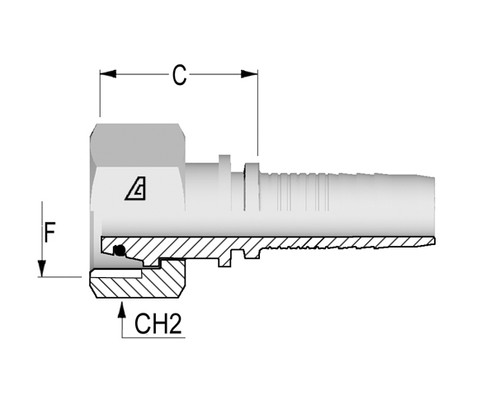

Alfagomma H1221513-1230 Metric O-Ring Female Swivel 24 Deg Seat, DIN 3865 Light‡, Two-Piece Fitting
- Brand: Alfagomma
- Seat: 24 Deg
- Hose Dash Size: 12
- Hose I.D.: 3/4", 19.0 mm
- Thread Size (A): M30 x 1.5 mm
- Tube O.D.: 22.00 mm
- Cut-Off Factor (C): 31.1 mm
- Hex Dia. (1): 36 mm
- Weight: 0.381 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: DIN DKO-L
- Configuration: Straight
- Nut Type: Slip On
- R5 Hose: 5/8
