Description

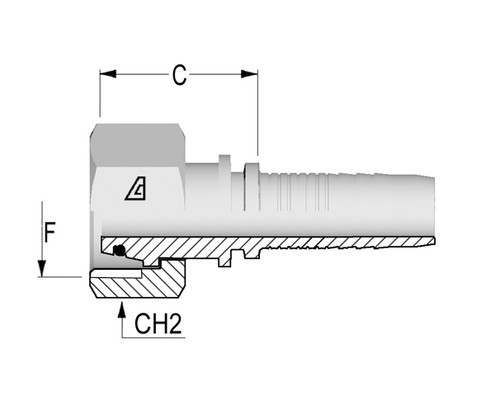

Alfagomma H1221513-1636 Metric O-Ring Female Swivel 24 Deg Seat, DIN 3865 Light‡, Two-Piece Fitting
- Brand: Alfagomma
- Seat: 24 Deg
- Hose Dash Size: 16
- Hose I.D.: 1", 25.4 mm
- Thread Size (A): M36 x 1.5 mm
- Tube O.D.: 28.00 mm
- Cut-Off Factor (C): 33.0 mm
- Hex Dia. (1): 41 mm
- Weight: 0.529 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: DIN DKO-L
- Configuration: Straight
- Nut Type: Slip On
- R5 Hose: 7/8
