Description

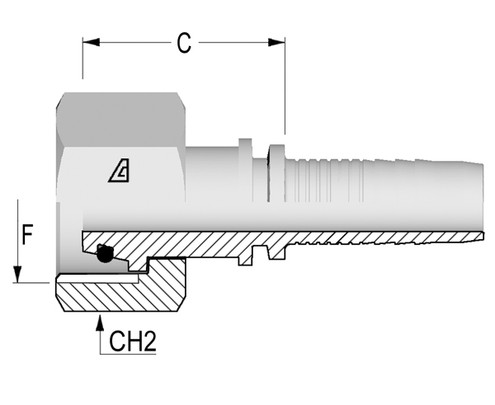

Alfagomma H1221613-0824 Metric O-Ring Female Swivel 24 Deg Seat , DIN 3865 Heavy, Two-Piece Fitting
- Brand: Alfagomma
- Seat: 24 Deg
- Hose Dash Size: 08
- Hose I.D.: 1/2", 12.7 mm
- Thread Size (A): M24 x 1.5 mm
- Tube O.D.: 16.00 mm
- Cut-Off Factor (C): 31.3 mm
- Hex Dia. (1): 30 mm
- Weight: 0.258 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: DIN DKO-S
- Configuration: Straight
- Nut Type: Slip On
- R5 Hose: 13/32
Product Features
Extended Information
Technical Specs
