Description
Alfagomma H1243360-1620 60 Deg O-Ring Flange SAE J518 Code 61 Solid Bent Tube, Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 16
- Hose I.D.: 1", 25.4 mm

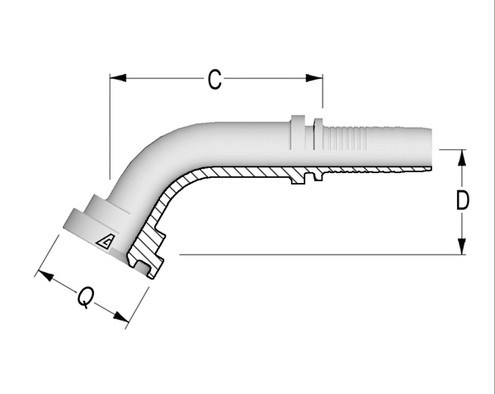

- Cut-Off Factor (C): 105.5 mm
- Flange Size (A): 2.00",38.1 mm
- Weight: 0.646 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Flange
- Thread Type: SAE Code 61 Flange
- Configuration: 60Deg Flange
- Nut Type: Solid
- R5 Hose: 7/8
- Drop (D): 56.5 mm
- Max. Working Pressure: 5000 PSI
