Description

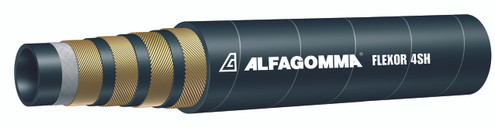

Alfagomma T855AA-24 Flexor 4SH Hydraulic Hose, Four wire spiral. Meets or exceeds EN 856 4SH and ISO 3862
- Tube - Synthetic rubber, black… oil-resistant.
- Reinforcement - Four layers of spirally wrapped high tensile steel wire reinforcement, separated by synthetic rubber over a fabric layer.
- Cover - Synthetic rubber, black… oil-, fuel-, weather-, ozone- and abrasion-resistant.
- Couplings - Interlock crimp-on permanent type or C126 series non-skive.
- Branding - ALFAGOMMA FLEXOR 4SH ID …WP …MPa (....PSI) - EN 856 4SH DN ....MSHA IC 152/8 - Q/YR
- Brand: Alfagomma
- Agency Compliancy: Bureau Veritas, Det Norske Veritas, Deutsche Institute Normen (20023 4SH), European Normen (856 4SH), Germanischer Lloyd, International Organization for Standardization (3862), Mining Safety and Health Administration, Nippon Kaiji Kyokai, Registro Navale Italiano
- Nominal I.D.: 1.500", 38.10 mm
- Nominal O.D.: 2.110", 53.5 mm
- Max. Working Pressure: 29.0 MPa, 4200 PSI
- Min. Bend Radius: 22.00", 560.0 mm
- Approx. Weight (per 100 ft.): 230.00 lbs
- Coupling Recommendations AlfaCrimp (One Piece): C126XXXXX-24
- Coupling Recommendations Ferrules (Two Piece): H1400200-24
- Temperature: -40 to 212 Deg F, 175 Deg F, 257 Deg F, -40 to 100 Deg C, 80 Deg C, 257 Deg C
- Application / Material Conveyed: Petroleum-based hydraulic fluids
