Description

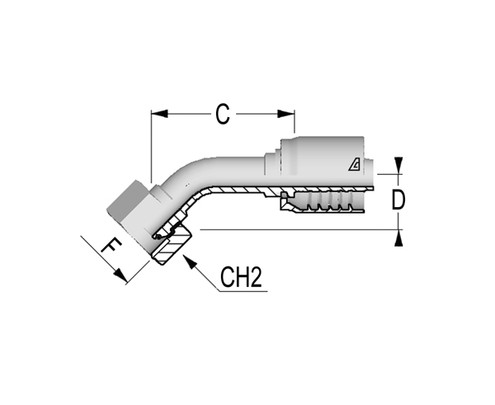

Alfagomma C12420842-2020 45 Deg BSP O-Ring Female Swivel 60 Deg Cone Solid Bent Tube, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: BSP with O-RING
- Material: Steel
- Weight Each: 1.821 lbs
- For Use with these Hoses: R12, R1AT, R2AT
- Hose Dash Size: 20
- Hose Size: 1.25", 31.80 mm
- Thread Dash Size (A): 20
- Thread Size (A): 1 1/4"-11
- Cut-Off Factor (C): 104.0 mm
- Drop (D): 42.0 mm
- Hex Dia. (1): 50 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid, 4 Spiral R12
- Connection Type: Female
- Configuration: 45Deg
- Nut Type: Slip On
