Description

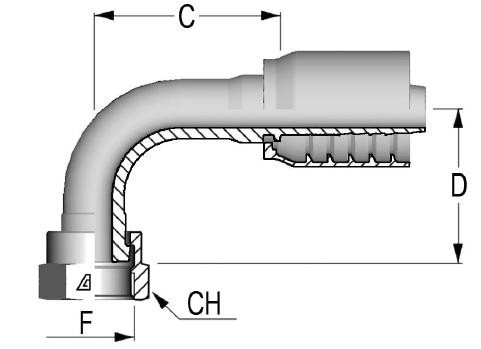

Alfagomma C12622491-1212 90 Deg ORFS Female for Ultra High Pressure Hoses, Solid Bent Tube, Crimped Nut, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: ORFS
- Material: Steel
- Hose Dash Size: 12
- Hose I.D.: 3/4", 19.0 mm
- Thread Dash Size (F): 12
- Thread Size (F): 1 3/16"-12
- Cut-Off Factor (C): 71.0 mm
- Drop (D): 58.0 mm
- Dimension - CH2: 36 mm
- Ferrule Type: Non Skive
- Hose Type: R 13/4 SH
- Connection Type: Female
- Configuration: 90Deg
- Nut Type: Crimped
- R5 Hose: 5/8
- Weight: 1.260 lbs
Product Features
Extended Information
Technical Specs
