Description

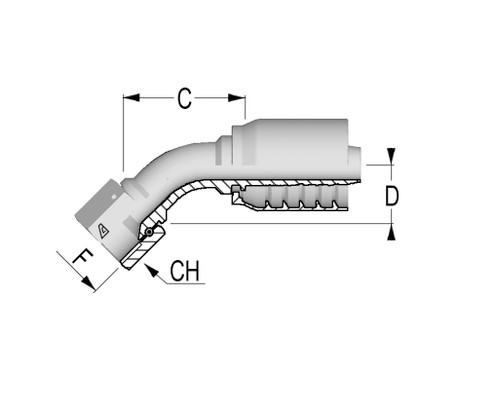

Alfagomma C12622542-1616 JIC Female Swivel 37 Deg Seat for Ultra High Pressure Hoses, Solid Bent Tube, Thrust Wire Nut, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: JIC
- Material: Steel
- Hose Dash Size: 16
- Hose I.D.: 1", 25.4 mm
- Thread Dash Size (F): 16
- Thread Size (F): 1 7/16"-12
- Cut-Off Factor (C): 77.9 mm
- Drop (D): 24.0 mm
- Dimension - CH2: 38 mm
- Ferrule Type: Non Skive
- Hose Type: R 13/4 SH
- Connection Type: Female
- Configuration: 45Deg
- Nut Type: Thrust Wire
- R5 Hose: 7/8
- Weight: 1.540 lbs
