Description
Alfagomma C12622592-2424 90 Deg JIC Female Swivel 37 Deg Seat for Ultra High Pressure Hoses, Solid Bent Tube, Thrust Wire Nut, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: JIC
- Material: Steel
- Hose Dash Size: 24
- Hose I.D.: 1.50", 38.1 mm
- Thread Dash Size (F): 24
- Thread Size (F): 1 7/8"-12

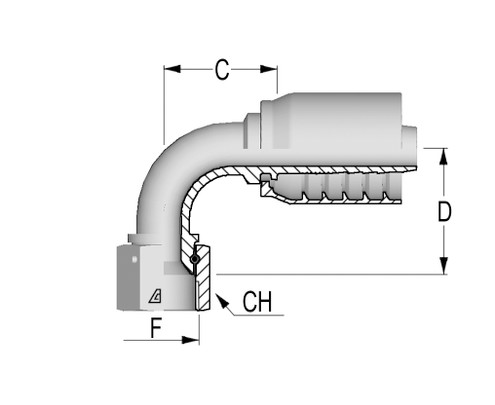

- Cut-Off Factor (C): 94.5 mm
- Drop (D): 92.0 mm
- Dimension - CH2: 55 mm
- Ferrule Type: Non Skive
- Hose Type: R 13/4 SH
- Connection Type: Female
- Configuration: 90Deg
- Nut Type: Thrust Wire
- R5 Hose: 1 3/8
- Weight: 3.530 lbs
Product Features
Extended Information
Technical Specs
Prop 65 Warning: Product's may contain one or more substances or chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
*The list price may not necessarily be the price at which the product or service is sold.
