Description

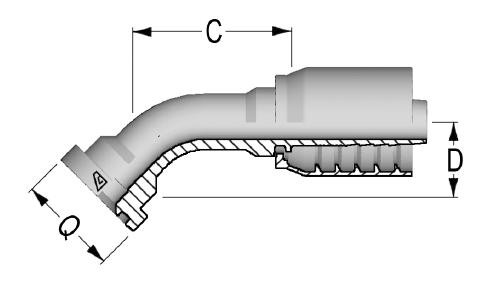

Alfagomma C12643640-1216 45 Deg Flange SAE J518 Code 62 for Ultra High Pressure Hoses, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: SAE Code 62 Flange
- Material: Steel
- Max. Working Pressure: 6000 PSI
- Hose Dash Size: 12
- Hose I.D.: 3/4", 19.0 mm
- Cut-Off Factor (C): 83.5 mm
- Drop (D): 33.0 mm
- Flange Size: 16.0
- Dimension - Q: 47.6 mm
- Ferrule Type: Non Skive
- Hose Type: R 13/4 SH
- Connection Type: Flange
- Configuration: 45Deg
- Nut Type: Solid
- R5 Hose: 5/8
- Weight: 1.320 lbs
