Description

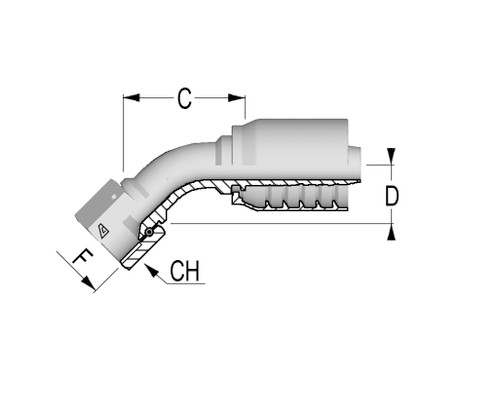

Alfagomma C12R22542-2020 JIC Female Swivel 37 Deg Seat for Ultra High Pressure Hoses, Solid Bent Tube, Thrust Wire Nut, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: JIC
- Material: Steel
- Hose Dash Size: 20
- Hose I.D.: 1 1/4", 31.8 mm
- Thread Dash Size (F): 20
- Thread Size (F): 1 5/8"-12
- Cut-Off Factor (C): 97.5 mm
- Drop (D): 37.0 mm
- Dimension - CH2: 50 mm
- Ferrule Type: Non Skive
- Hose Type: R 13/4 SH
- Connection Type: Female
- Configuration: 45Deg
- Nut Type: Thrust Wire
- R5 Hose: 1 1/8
- Weight: 2.710 lbs
