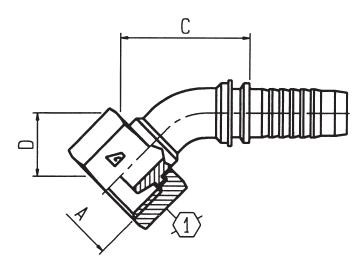

Alfagomma H1221343-0618 45 Deg Metric Swivel Female Multiseal, DIN 3868 Solid Bent Tube, Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 06
- Hose I.D.: 0.38", 9.5 mm
- Thread Size (A): M18 x 1.5 mm
- Cut-Off Factor (C): 42.8 mm
- Drop (D): 17.5 mm
- Hex Dia. (1): 22 mm
- Weight: 0.176 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: DIN Metric Univ. 24Deg /60Deg
- Configuration: 45Deg
- Nut Type: Slip On
- R5 Hose: 5/16
