Description

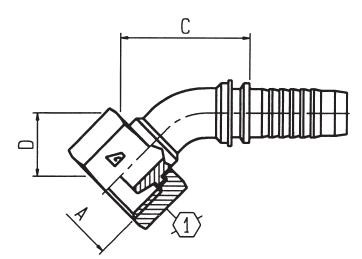

Alfagomma H1221343-0822 45 Deg Metric Swivel Female Multiseal, DIN 3868 Solid Bent Tube, Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 08
- Hose I.D.: 1/2", 12.7 mm
- Thread Size (A): M22 x 1.5 mm
- Cut-Off Factor (C): 47.0 mm
- Drop (D): 19.0 mm
- Hex Dia. (1): 27 mm
- Weight: 0.287 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: DIN Metric Univ. 24Deg /60Deg
- Configuration: 45Deg
- Nut Type: Slip On
- R5 Hose: 13/32
