Description
Alfagomma H1443390-1012 90 Deg O-Ring Flange SAE J518 Code 61 Solid Bent Tube Interlock, Interlock Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 10
- Hose I.D.: 0.63", 15.9 mm

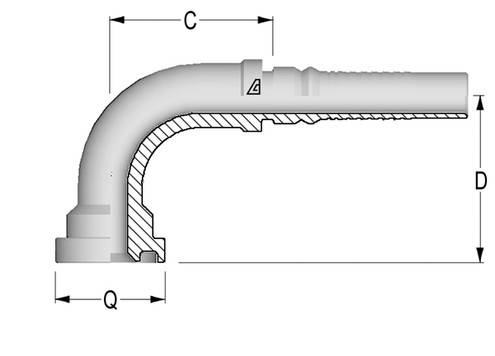

- Flange Size (A): 1.50", 38.1 mm
- Cut-Off Factor (C): 53.0 mm
- Drop (D): 55.0 mm
- Max. Working Pressure: 5000 PSI
- Weight: 0.608 lbs
- Material: Steel
- Fitting Type: Interlock
- Connection Type: Flange
- Thread Type: SAE Code 61 Flange
- Configuration: 90Deg
- Nut Type: Solid
- R5 Hose: 1/2
