Description
Alfagomma H1443690-2424 90 Deg O-Ring Flange SAE J518 Code 62 Solid Bent Tube Interlock, Interlock Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 24
- Hose I.D.: 1.50",38.1 mm

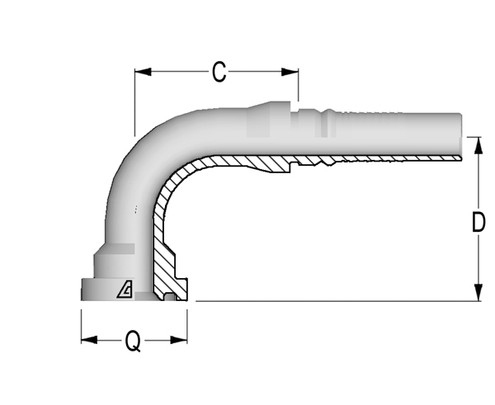

- Flange Size (A): 2.50", 63.5 mm
- Cut-Off Factor (C): 100.5 mm
- Drop (D): 98.5 mm
- Max. Working Pressure: 6000 PSI
- Weight: 2.690 lbs
- Material: Steel
- Fitting Type: Interlock
- Connection Type: Flange
- Thread Type: SAE Code 62 Flange
- Configuration: 90Deg
- Nut Type: Solid
- R5 Hose: 1 3/8
