Description

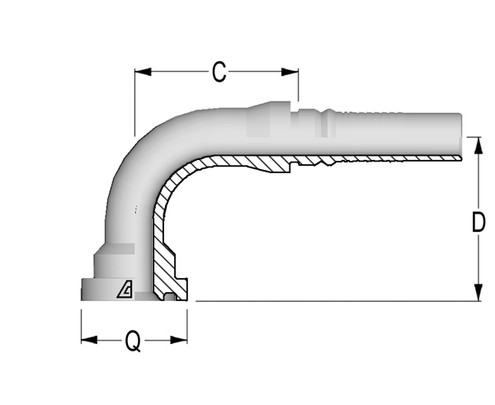

Alfagomma H1443690-3232 90 Deg O-Ring Flange SAE J518 Code 62 Solid Bent Tube Interlock, Interlock Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 32
- Hose I.D.: 2.00",50.8 mm
- Flange Size (A): 3.13", 79.4 mm
- Cut-Off Factor (C): 154.0 mm
- Drop (D): 134.5 mm
- Max. Working Pressure: 6000 PSI
- Weight: 6.173 lbs
- Material: Steel
- Fitting Type: Interlock
- Connection Type: Flange
- Thread Type: SAE Code 62 Flange
- Configuration: 90Deg
- Nut Type: Solid
- R5 Hose: 1 13/16
