Description

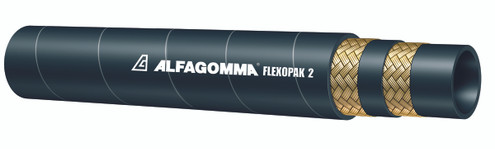

Algagomma T822AA-04 Flexopak 2 Hydraulic Hose, double wire braid on Easy-to-handle Reels. Meets or exceeds EN 857 2SC and exceeds SAE 100 R16
- Tube - Synthetic rubber, black.
- Reinforcement - Two high tensile steel wire braids, separated by a layer of synthetic rubber.
- Cover - Synthetic rubber, black.. weather-, oil-, fuel-, ozone- and abrasion-resistant.
- Couplings - Crimp-on permanent type.
- Branding - ALFAGOMMA FLEXOPAK 2 ID..WP.. MPa (..PSI) - EXCEEDS SAE 100 R16 - EN 857 2SC ..DN ..Q/YR
- Brand: Alfagomma
- Agency Compliancy: Bureau Veritas, Det Norske Veritas, European Norme (857 2SC), Glowny Instytut Gornietwa, International Organization for Standardization (11237), Registro Navale Italiano, Society of Automotive Engineers (100 R16)
- Nominal I.D.: 0.250", 6.35 mm
- Nominal O.D.: 0.530", 13.4 mm
- Max. Working Pressure: 40.0 MPa, 5850 PSI
- Min. Bend Radius: 2.00", 51.0 mm
- Approx. Weight (per 100 ft.): 18.00 lbs
- Coupling Recommendations AlfaCrimp (One Piece): C122XXXXX-04
- Coupling Recommendations Ferrules (Two Piece): H1200102-04
- Coupling Recommendations Skive Option (Two Piece): H1100204-04
- Temperature: -40 to 212 Deg F, 160 Deg F, 257 Deg F, -40 to 100 Deg C, 70 Deg C, 125 Deg C
- Option: MSHA accepted cover available on request.
- Application / Material Conveyed: Air, Fuel oils, Grease, Hot oil, Lubricants, Oil, Petroleum-based hydraulic fluids, Water, Water and fire-resistant hydraulic fluids, Water/glycol
Product Features
Extended Information
Technical Specs
Prop 65 Warning: Product's may contain one or more substances or chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
