Description

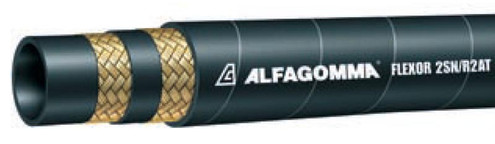

Alfagomma T846AA-06 Flexor 2SN/R2AT Hydraulic Hose, Double Wire Braid on easy-to-handle reels
- Tube - Seamless synthetic rubber, black… oil resistant.
- Reinforcement - High tensile steel wire braid.
- Cover - Synthetic rubber, black… weather, oil, fuel, ozone and abrasion-resistant.
- Couplings - Standard fittings and AlfaCrimp.
- Branding - ALFAGOMMA FLEXOR 2SN ID ..WP..MPa (…PSI) – SAE 100R2AT - EN 853 2SN DN …Q/YR
- Brand: Alfagomma
- Agency Compliancy: ALFAGOMMA Proprietary Hose
- American Bureau of Shipping
- Bureau Veritas
- Det Norske Veritas
- Deutsche Institute Normen (20022 2SN)
- European Normen (853 2SN)
- Germanischer Lloyd
- Glowny Instytut Gornietwa
- International Organization for Standardization (1436)
- Nippon Kaiji Kyokai
- Registro Navale Italiano
- Society of Automotive Engineers J517 (100 R2AT)
- Nominal I.D.: 0.380", 9.5 mm
- Nominal O.D.: 3/4", 19.1 mm
- Max. Working Pressure: 33.0 MPa, 4800 PSI
- Min. Bend Radius: 5.00", 125.0 mm
- Approx. Weight (per 100 ft.): 34.00 lbs
- Coupling Recommendations Ferrules (Two Piece): H1200203-06
- Coupling Recommendations Skive Option (Two Piece): H1200203-06
- Temperature: -40 to 212 Deg F, 160 Deg F, 257 Deg F, -40 to 100 Deg C, 70 Deg C, 125 Deg C
- Option: MSHA IC-152/8 accepted cover on T846AA hose style.
- Application / Material Conveyed: Air, Crude oils, Grease, Hot oil, Lubricants, Petroleum-based hydraulic fluids, Water
